Features

View Small Objects on Big Screens

INS-1 Document Camera captures ultra high definition images and output to TV and large monitors. It is tiny, easy to use. Teachers can use it to make the lesson come alive for students.

Live Streaming in Ultra-High Quality

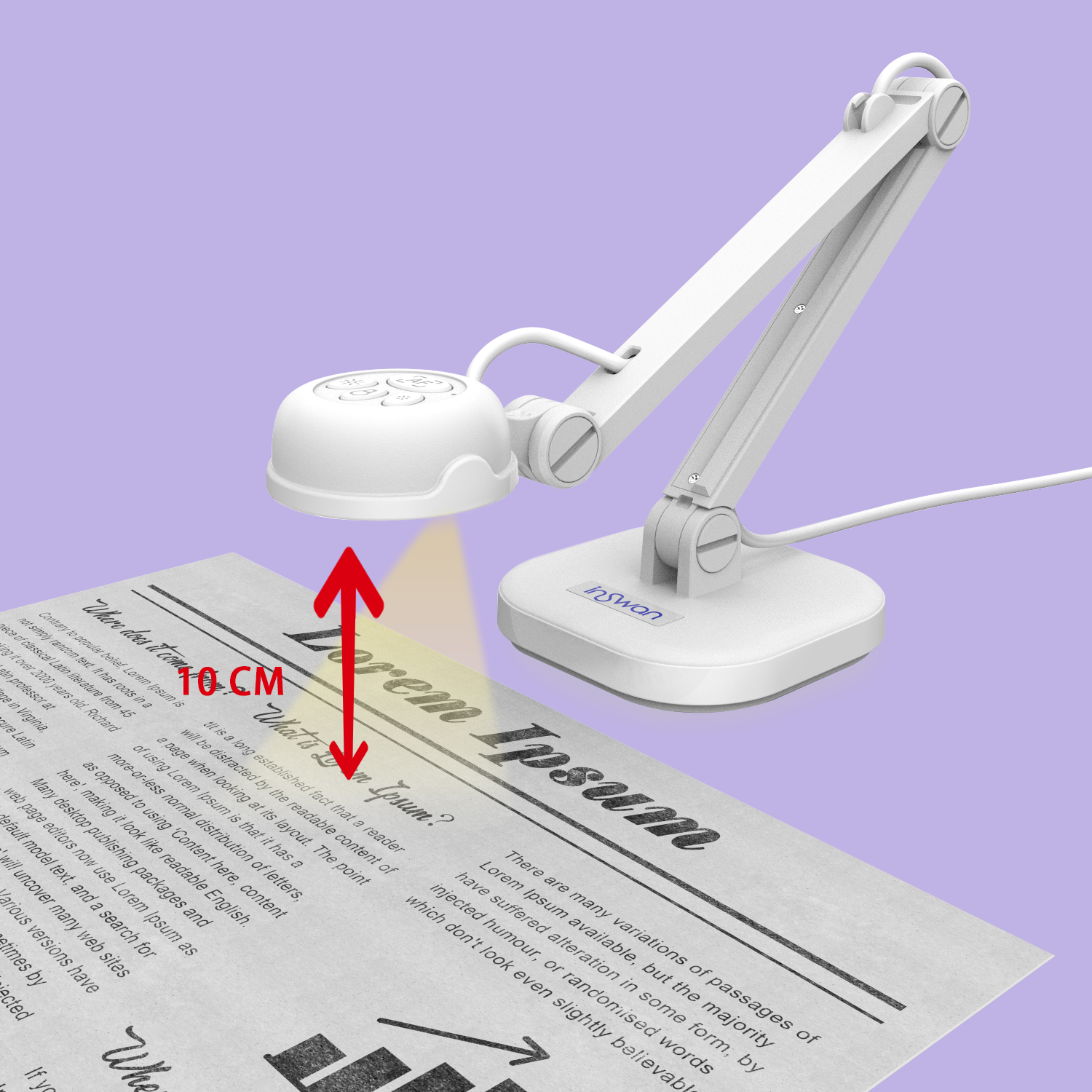

INS-1 features 8MP SONY CMOS sensor to capture live images up to 3264 x 2448 pixels at 30 fps, and auto-focus lens to quickly shift focus between objects (minimum distance 10 cm).

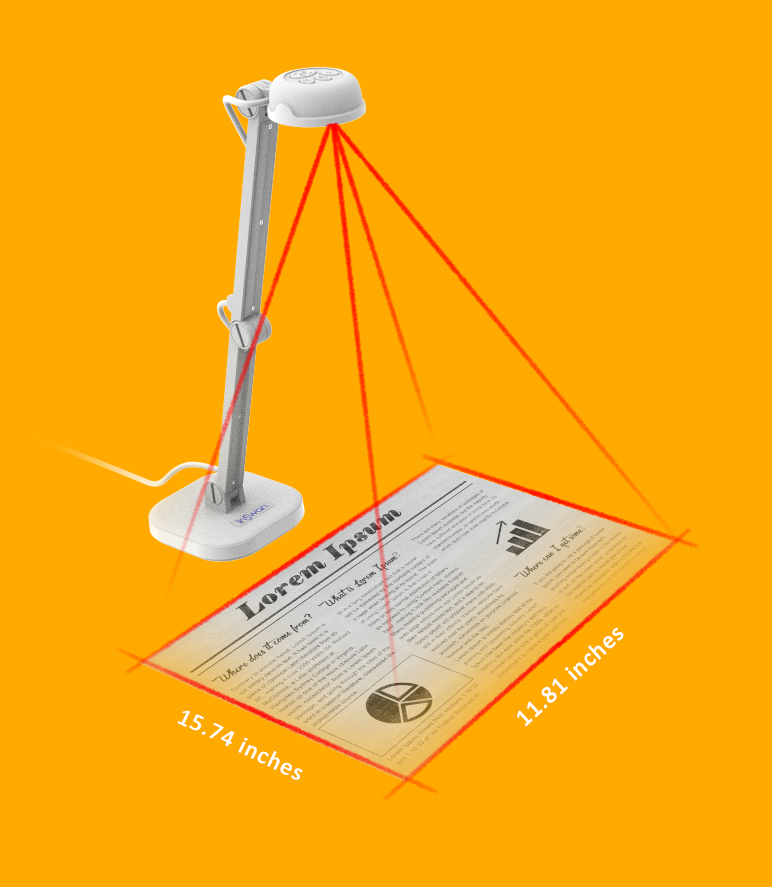

Tiny and Easy to Use

Its tiny stand design saves the space to put on the class desk. Its durable multi-joint design allows for excellent capture of 2D and 3D objects. The Maximum shooting area is 11.81X 15.74 inches.

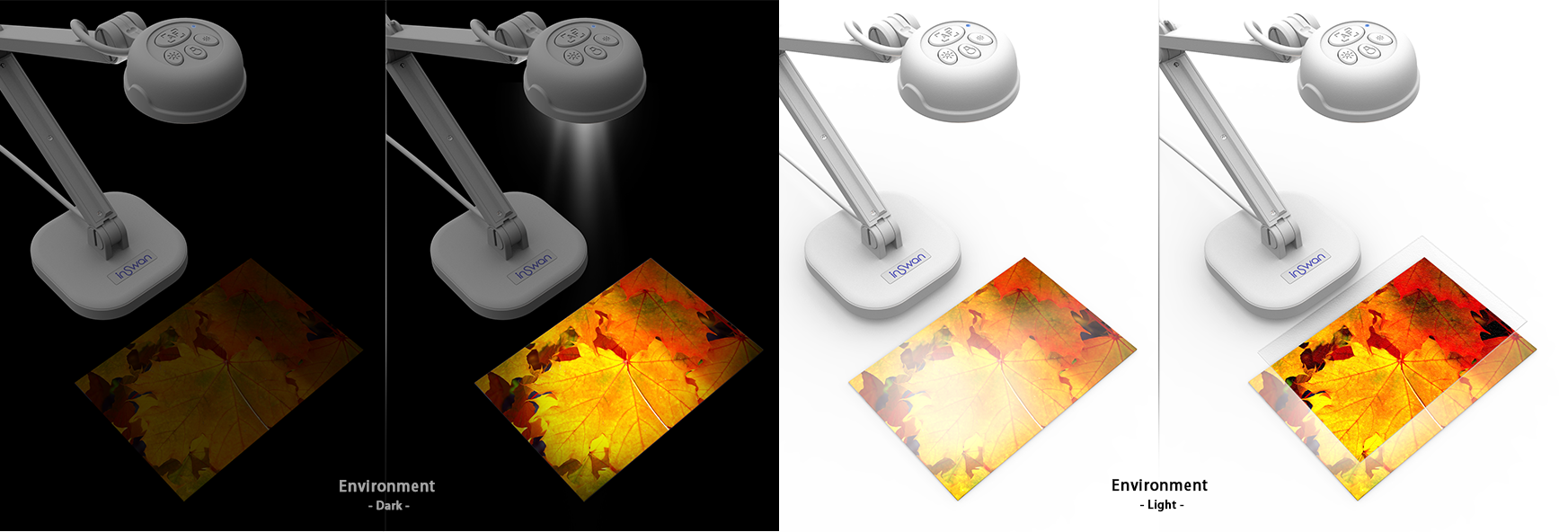

Suitable under All Lighting Conditions

INS-1 has an LED supplemental light and bundled an anti-glare sheet that allows you to use it in a variety of lighting environments.

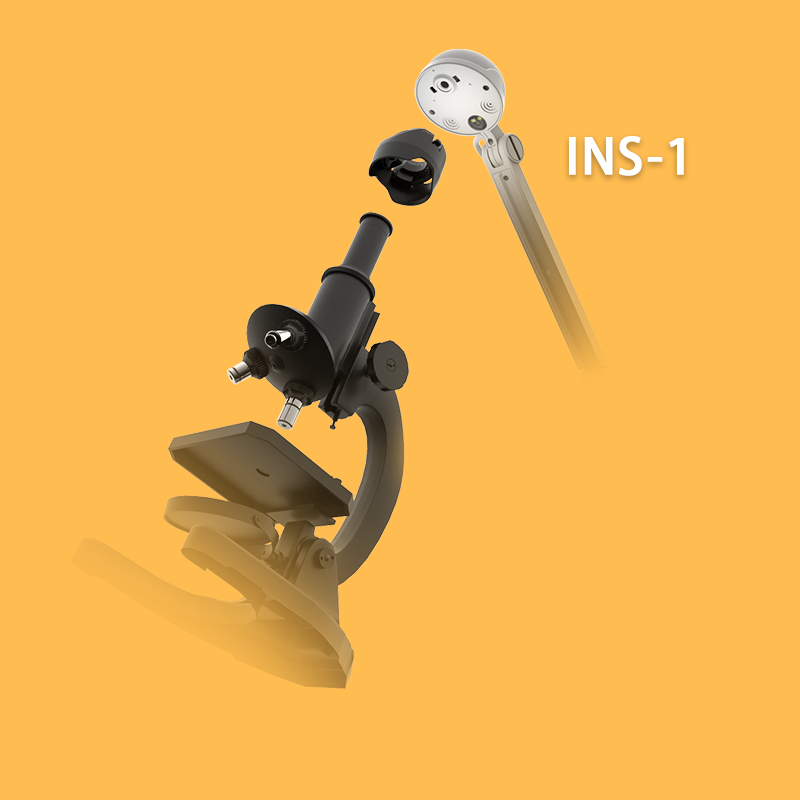

Connection to Your Microscope

You can even connect it to a Ø28mm/Ø34mm-eyepiece-microscope to output microscopic objects to a big screen.

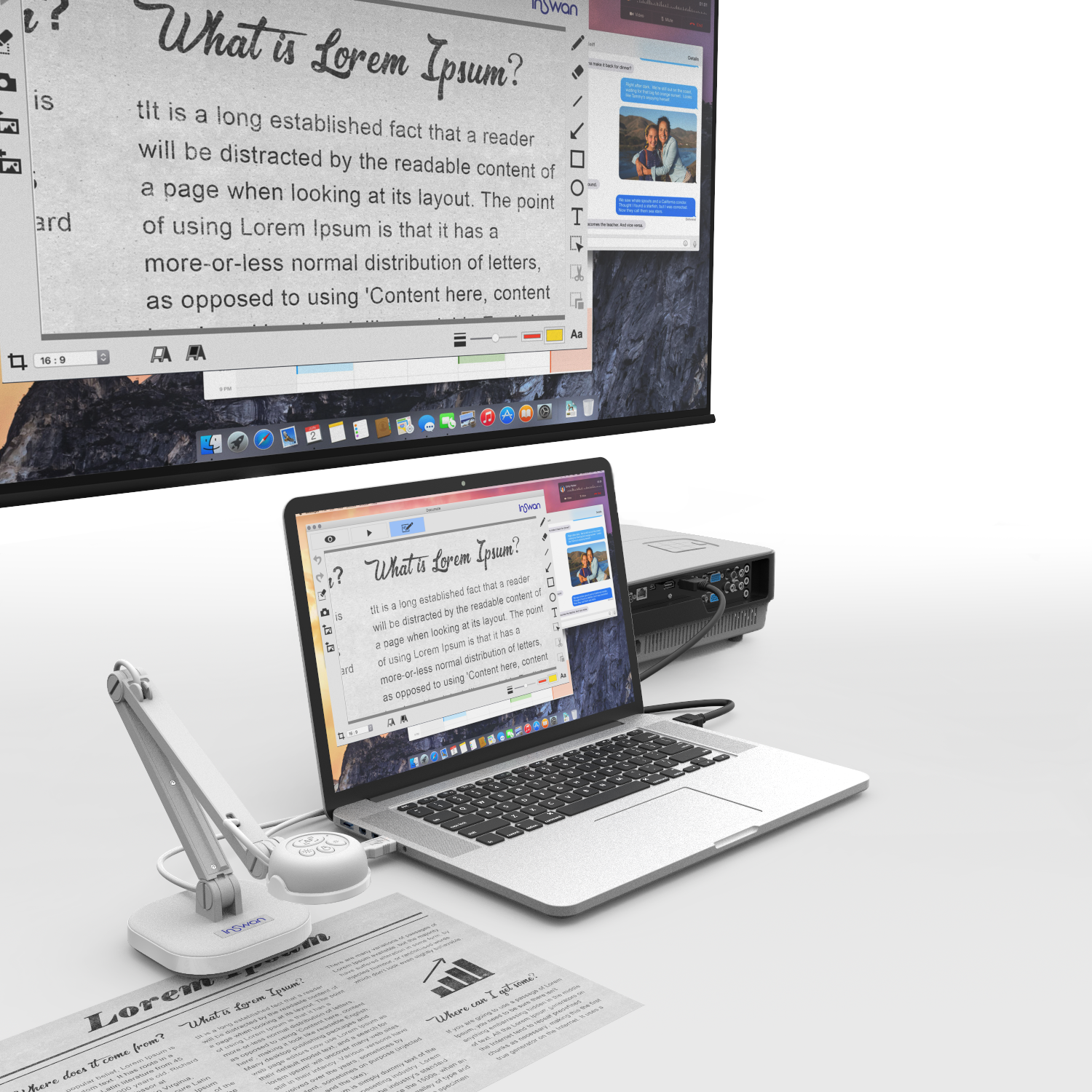

Live Annotation and Video Recording

The built-in microphone and function buttons on the head allow INS-1 to work well with its bundled application, and other webinar software as well, to teach or for other purposes. With its bundled Documate application, you can even annotate on live streaming and record it for future use.

Compatible with Windows, Mac and Chrome OS

A computer is required while using INS-1, which seamless operate with applications for Mac(10.10 and higher), PC(window7/8/X), and Chromebook.

Package Content

  • Package content: INS-1 Document Camera, Quick Guide, Anti-Glare Sheet, Microscope Adapters.

    • Free Software Update and Useful Information

  • The latest software update and friendly service: You can download the newest version of Documate application and access to how-to-use instructional videos and user’s manual on the INSWAN official website anytime and anywhere.

    • Designed and made in Taiwan.

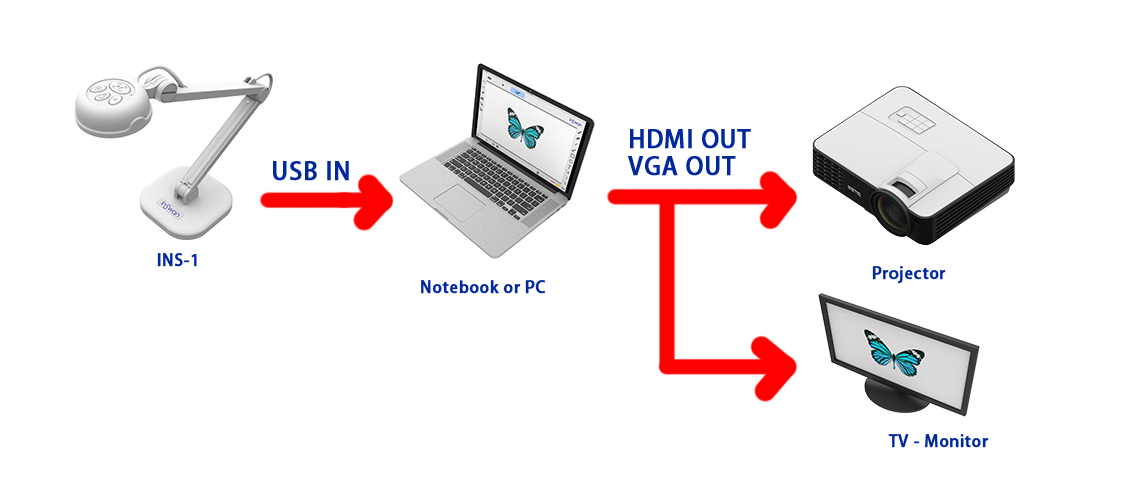

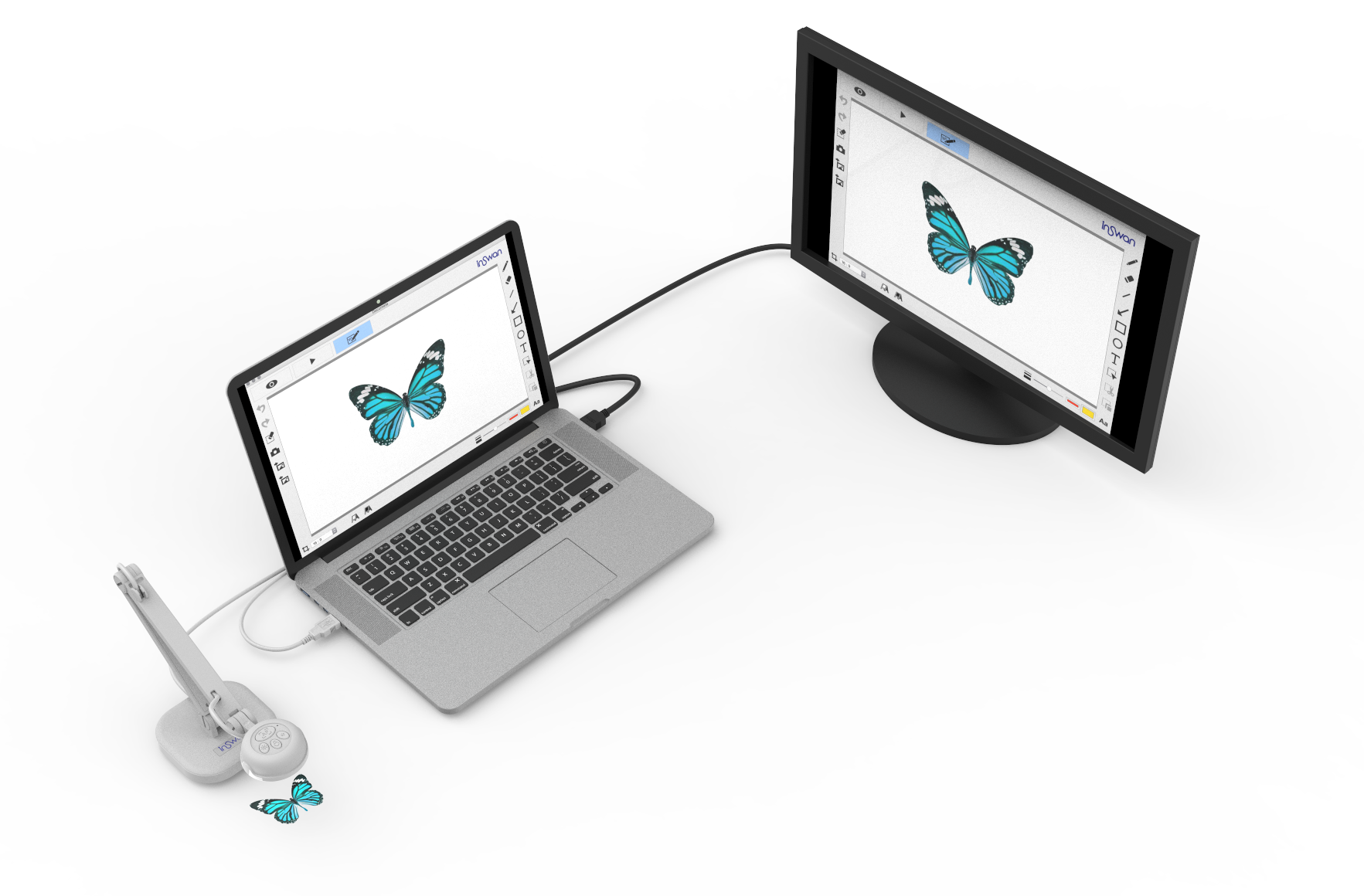

    How to Connect

    High interoperability

    The INS-1 seamlessly operates with Mac, PC, and Chromebook and can output captured images to TV and large monitors.

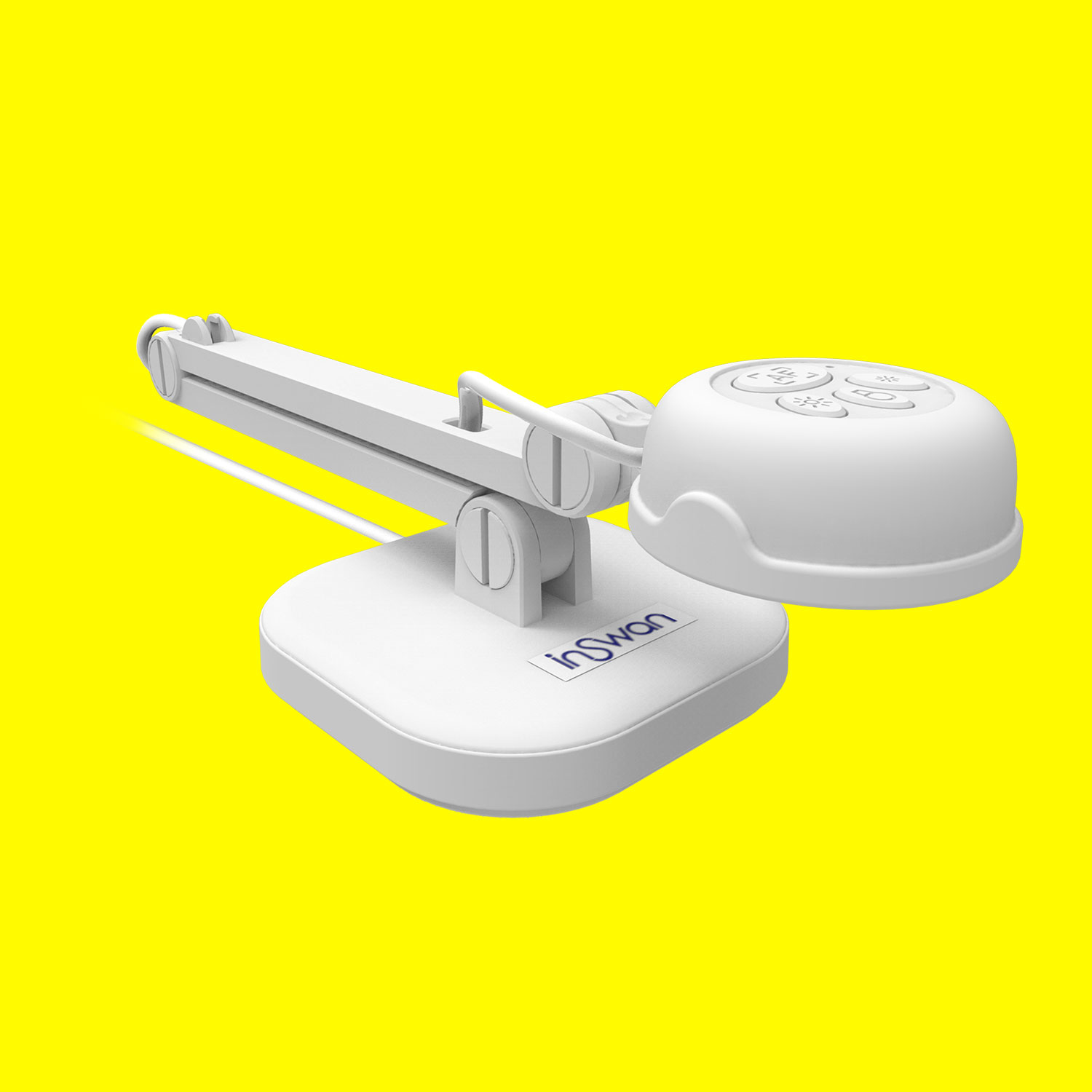

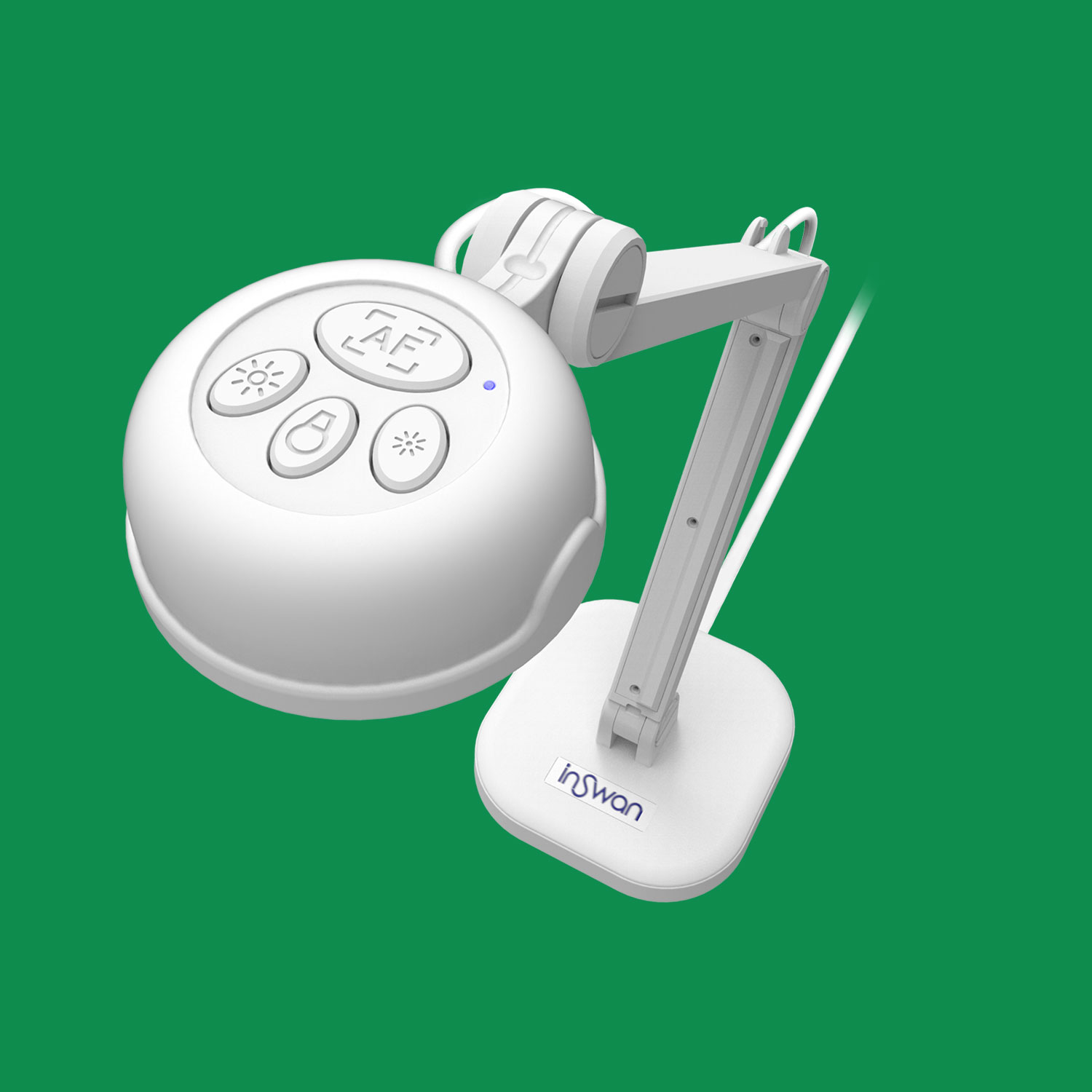

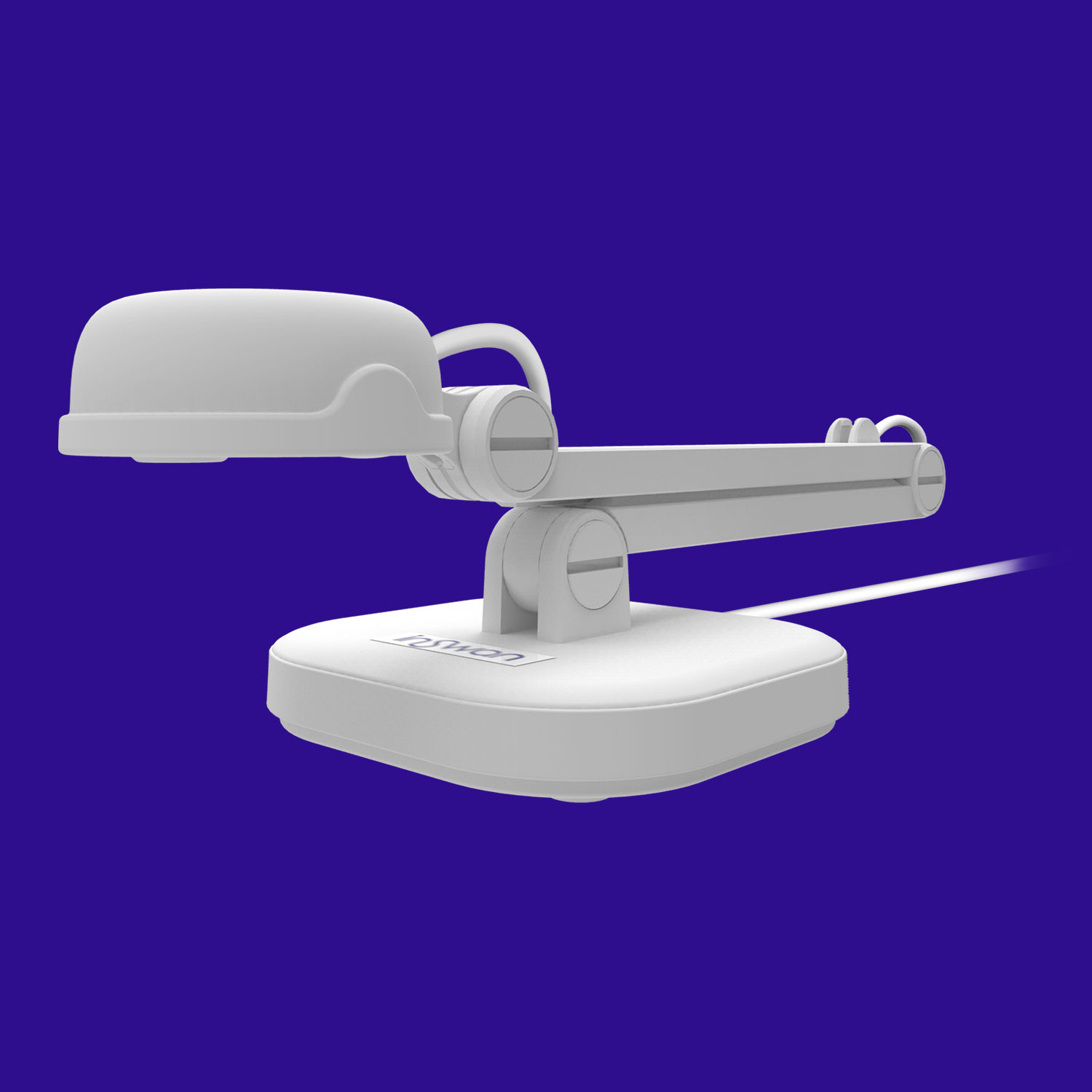

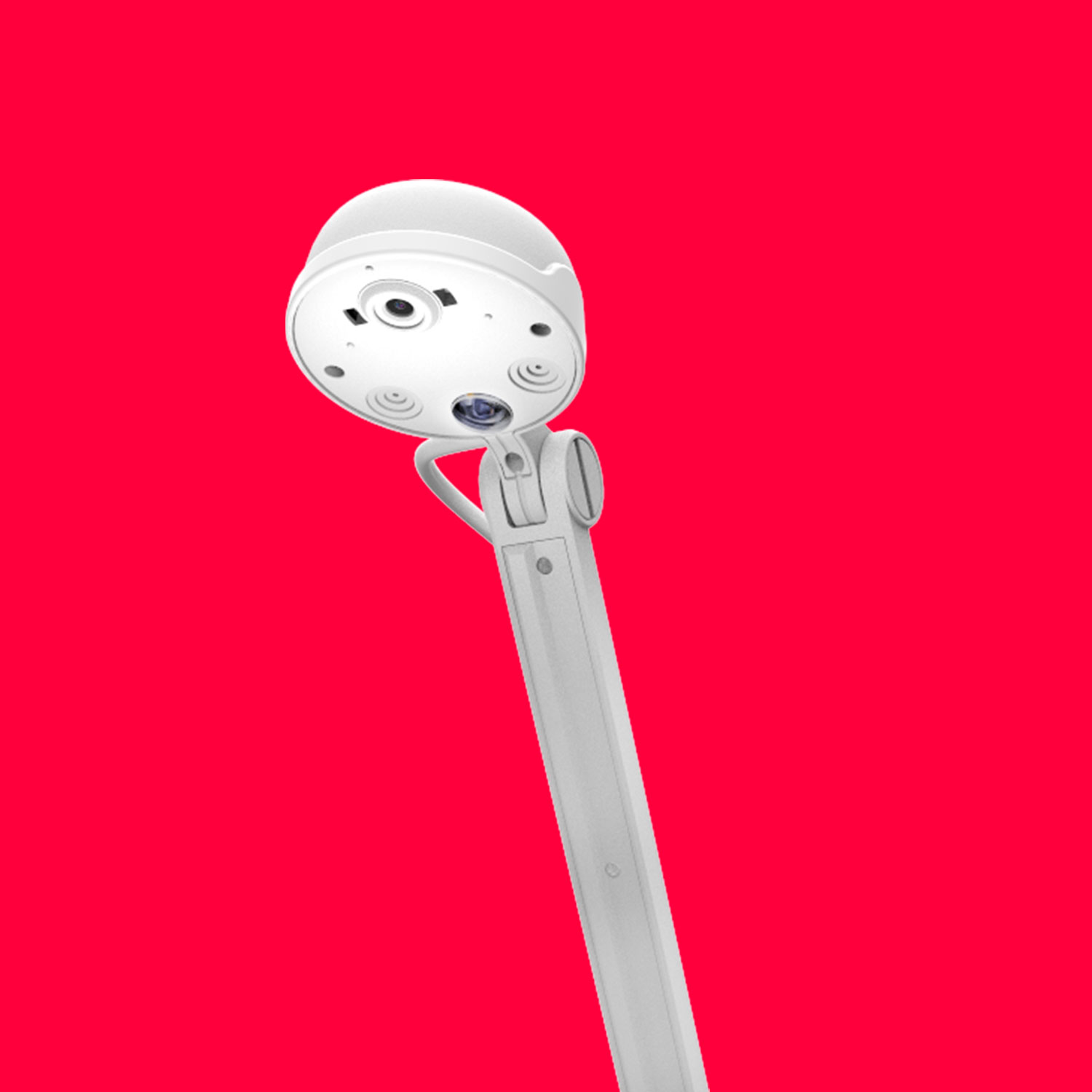

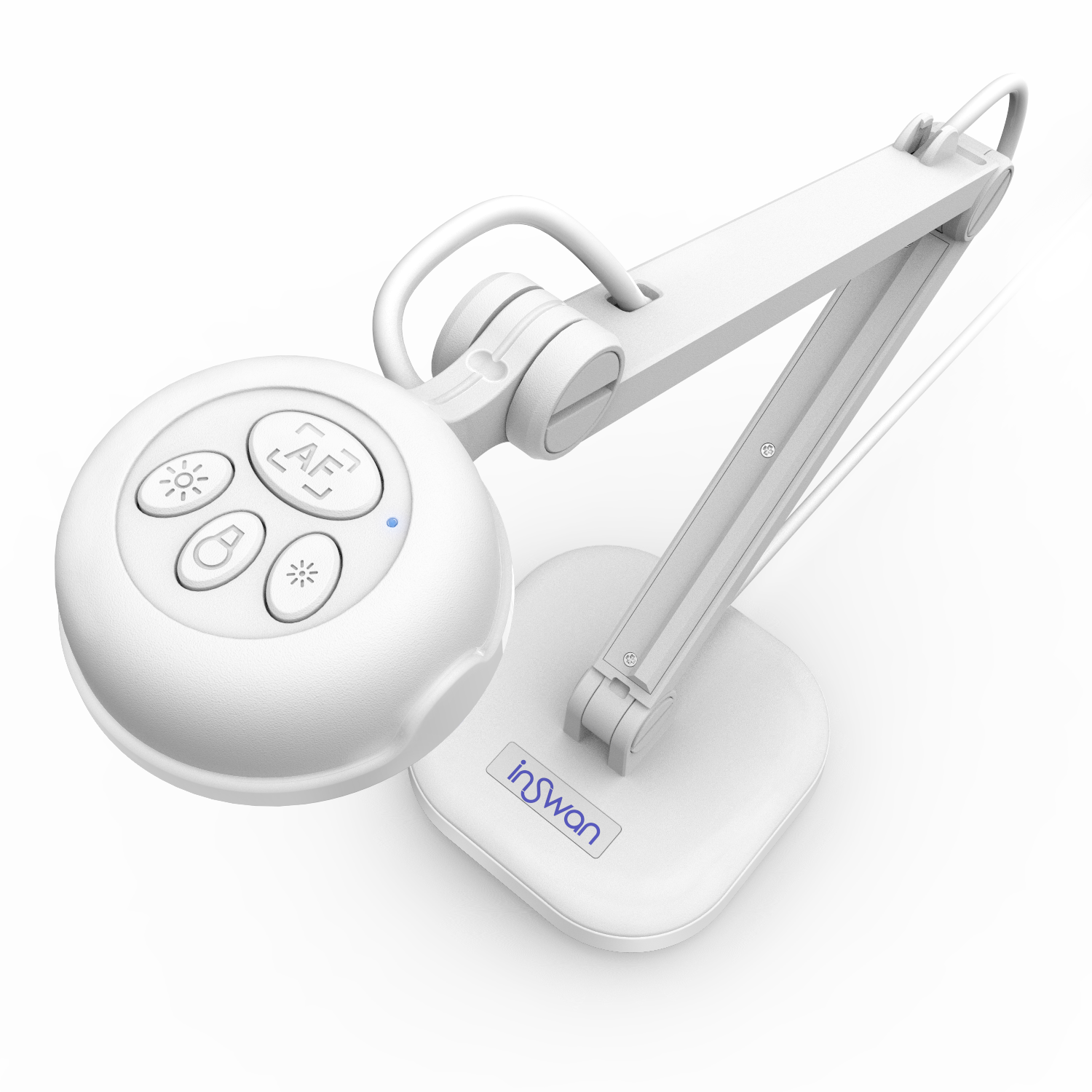

    Appearances

    Specifications

    Workspace 400 mm x 300 mm
    Auto Focus Yes ( 10 cm to infinity )
    Digital Zoom 8X
    Illumination
    Supplement    		 Yes ( Built-in LED Light )
    Sensor 8 Mega pixels color CMOS sensor
    Still Images &
    Video Streaming
  • 3264 x 2448 / up to 30 fps
  • 2592 x 1944 / up to 30 fps
  • 2048 x 1536 / up to 30 fps
  • 1600 x 1200 / up to 30 fps
  • 1920 x 1080 / up to 30 fps
  • 1280 x 720 / up to 30 fps
  • 1024 x 768 / up to 30 fps
    		•
    Mechanical Arm Yes
    PC Camera Yes ( Plug and Play )
    IO Connectors USB 2.0 port
    Power Source USB 5.V Power Consumption

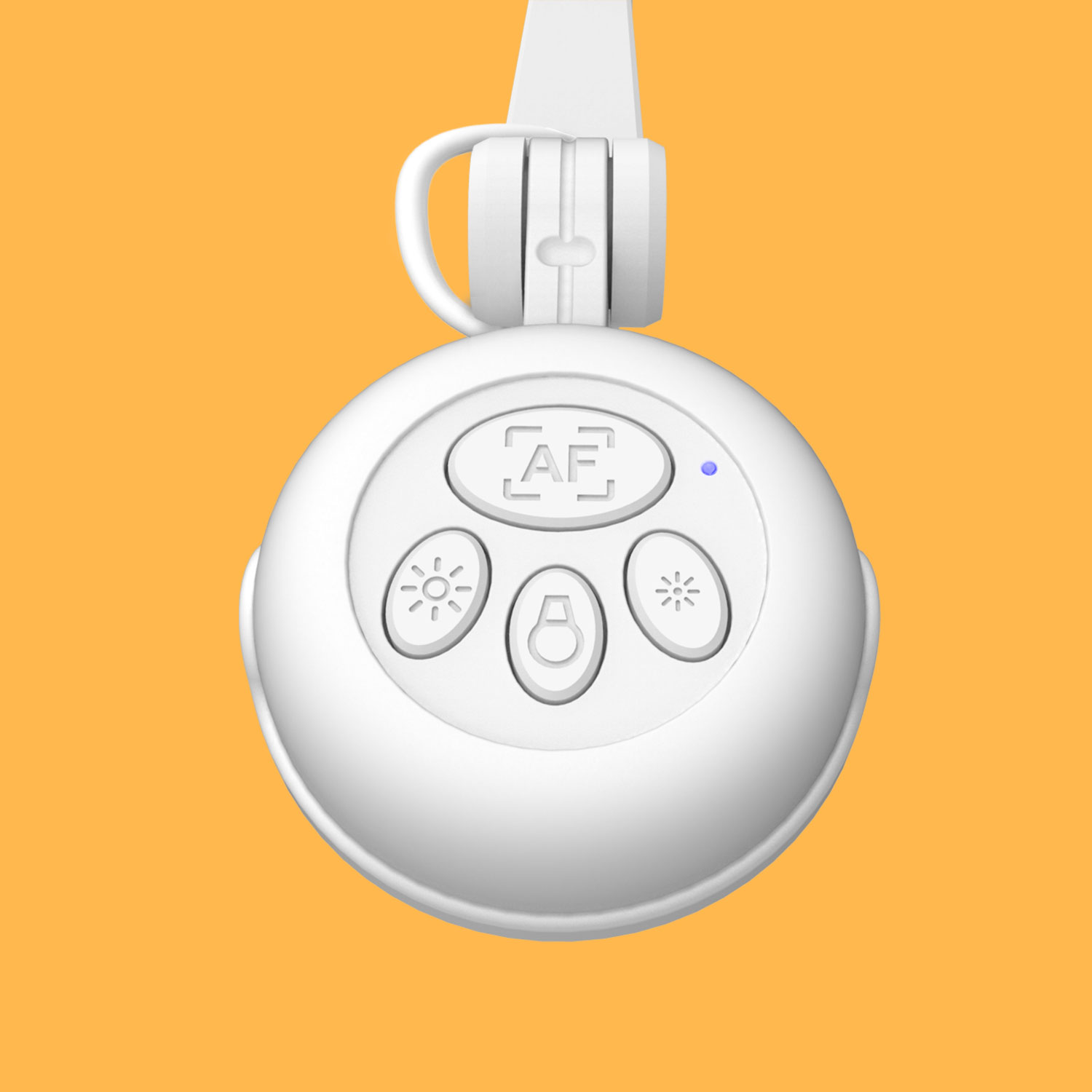

    Hot Keys
  • Auto Focus
  • LED Control
  • Explosion +
  • Explosion -
    		•
    Bundled Software Documate
    Package Content
  • Document Camera x 1
  • Quick Guide x1
  • Anti-glare Sheet x1
  • Microscope Adapters
    		•
    System
    Requirements
  • Windwos 7, Windows 8.1, Windows 10
  • Mac OS 10.10 or higher
  • Chrome 38.0 or higher
  • 2.4 GHz Intel Core 2 Duo Processor or higher
  • 2 GB RAM or more
  • USB 2.0 port or higher
    		•

    Downloads

    The INS-1 works with Documate application software and provides comprehensive capture and display functions for the classroom and/or the conference room. Click here to download the application.
